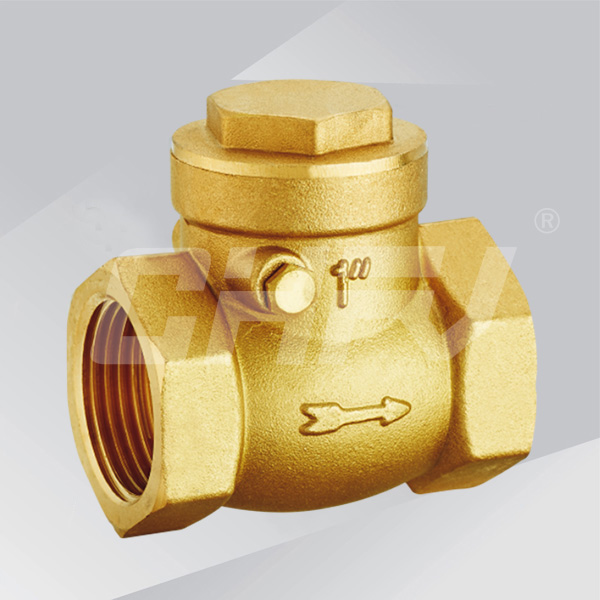

Horizontal check valve
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Location：Products >> Copper valve >> Horizontal check valve
Product Type: H11W-16
Nominal diameter: DN15 ~ 100mm
Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid ( ≤ 0.6MPa )
Operating temperature: -10 ℃ ≤ t ≤ 100 ℃
Pipe thread standard: ISO228
Nominal diameter: DN15 ~ 100mm
Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid ( ≤ 0.6MPa )
Operating temperature: -10 ℃ ≤ t ≤ 100 ℃
Pipe thread standard: ISO228
Product details
Standard sizes
| DN (mm) | NPS (in) | A | B | C | G |
| 15 | 1/2 | 48 | 13 | 34 | 1/2 |
| 20 | 3/4 | 59 | 17 | 40.5 | 3/4 |
| 25 | 1 | 68 | 23 | 46 | 1 |
| 32 | 1 1/4 | 78 | 30 | 51.5 | 1 1/4 |
| 40 | 1 1/2 | 88 | 35 | 57.5 | 1 1/2 |
| 50 | 2 | 105 | 45 | 68.5 | 2 |
| 65 | 2 1/2 | 130 | 63 | 85.5 | 2 1/2 |
| 80 | 3 | 147 | 75 | 95.5 | 3 |
| 100 | 4 | 180 | 93 | 116.5 | 4 |
