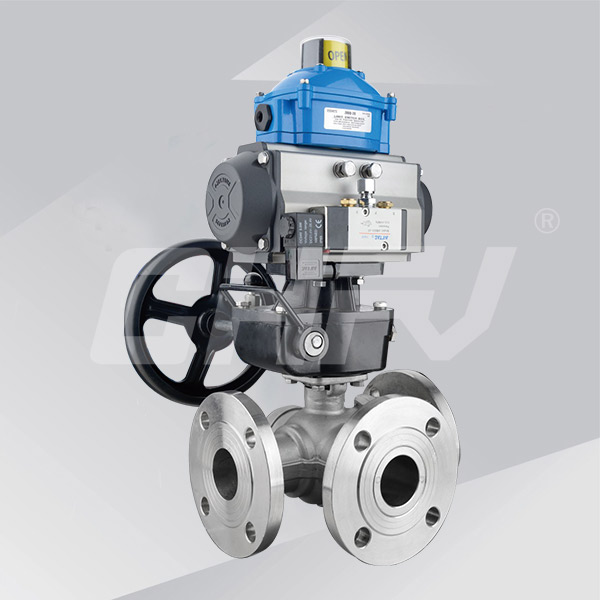

Pneumatic three-way ball valve

Release time:2023/9/15



First, the pneumatic three-way ball valve
Pneumatic three-way ball valve can be divided into L-shaped pneumatic three-way ball valve and T-shaped pneumatic three-way ball valve, L-shaped (Q44F) three-way ball valve for medium flow switching, Channel connection; T-shaped (Q45F) three-way ball valve for medium diversion, confluence and flow switching. T-tee can make the three channels connected to each other or the two of the channels. Three-way ball valve generally use two seat structure, can also be used according to user requirements four seat structure.

 Second, pneumatic three-way ball valve performance parameters

test pressure Nominal pressure (Mpa)
Mpa 1.6 2.5 4.0 CL150 JIS10K
Strength test 2.4 3.8 6.0 3.2 2.4
Seal test 1.8 2.8 4.4 2.2 1.5
Airtight test 0.5-0.7
Operating temperature PTFE≤150 ℃ PTL≤300 ℃
Suitable media C: water, oil and gas; P: nitric acid; R: acetic acid


Third, pneumatic three-way ball valve parts of the main material

Body, bonnet WCB, CF8
Sphere WCB Hcr, CF8
Valve stem 2Cr13, CF8
Seat PTFE
filler PTFE


 Fourth, pneumatic three-way ball valve main dimensions

PN Nominal diameter L L1 H W Weight (kg)
Mpa mm in mm mm mm mm 1.6 2.5 4.0 CL150 JIS10K

1.6
2.5
4.0
CL150
JIS10K

15 1/2 130 65 62 100 2.5 3.0 3.5 2.5 2.5
20 3/4 150 75 68 160 3.0 3.5 4.5 3.0 3.6
25 1 160 80 75 160 4.8 5.0 6 5.0 5.0
32 1 1/4 180 90 85 200 6.5 7 8.5 7 7
40 1 1/2 200 100 95 200 8.5 9 10.5 9 9
50 2 230 115 110 250 11 12 14 12 11
65 2 1/2 290 145 130 300 15 17 20 16 16
80 3 310 155 155 400 21 22 32 21 22
100 4 350 175 180 500 33 36 50 36 36
125 5 400 200 250 600 65 70 80 68 70
150 6 480 240 275 800 103 110 120 105 105
200 8 580 290 325 1000 152 168 180 160 160
