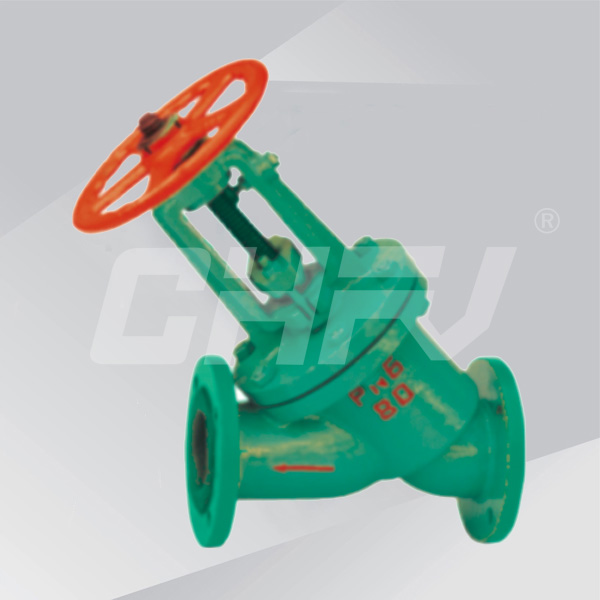

Liner direct-flow globe valve
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal diameter: DN5 ~ 250mm
Nominal: PN0.6-1.0Mpa
Temperature: ≤150 ℃
Main material: HT200 fluorine plastic, rubber lining
Designed and manufactured according to: GB / 12239
Length of the structure: GB / 12221
Flange connection size by: GB4126.3 GB4216.4
Test Press: GB / T13927
First, performance specifications
|
model |
Nominal pressure PN (MPa) |
Test pressure PS (MPa) |
Suitable media |
Working temperature (℃) |
|
|
Shell test |
Seal test |
||||
|
J45J / F46-6 |
0.6 |
0.9 |
0.66 |
W. Non-corrosive fluids |
≤80 |
|
J45J / F46-10 |
1.0 |
1.5 |
1.1 |
||
Second, the main parts and components table
|
Part Name |
Body, disc |
cap |
Stem, valve flap |
Hand silhouette |
|
material |
HT200 fluorine plastic, rubber lining |
HT200 fluorine plastic, rubber lining |
35 lining fluorine plastic lining rubber |
HT200 |
Third, the main connection size and weight
|
Nominal diameter DN (mm) |
Size (mm) |
Quality (kg) |
|||||||
|
L |
D |
D1 |
D |
H1 |
b |
Do |
nd |
||
|
5 |
160 |
100 |
75 |
60 |
205 |
16 |
120 |
4-11 |
4.5 |
|
32 |
200 |
120 |
90 |
70 |
- |
16 |
160 |
4-13.5 |
13 |
|
|
|
130 |
100 |
80 |
250 |
16 |
160 |
4-13.5 |
14 |
|
50 |
230 |
140 |
110 |
90 |
290 |
16 |
160 |
4-13.5 |
16.5 |
|
65 |
290 |
160 |
130 |
100 |
310 |
16 |
180 |
4-13.5 |
|
|
80 |
310 |
190 |
150 |
125 |
358 |
18 |
200 |
4-17.5 |
36 |
|
|
|
210 |
170 |
145 |
428 |
18 |
200 |
4-17.5 |
50 |
|
125 |
400 |
240 |
200 |
175 |
510 |
20 |
280 |
8-17.5 |
68 |
|
150 |
480 |
265 |
225 |
200 |
550 |
20 |
280 |
8-17.5 |
90 |
|
200 |
600 |
30 |
280 |
255 |
635 |
22 |
400 |
8-17.5 |
146 |
|
250 |
730 |
375 |
335 |
312 |
|
24 |
|
12-.17.5 |
|
