Throttling valve on the welding
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal Diameter: DN25 200mm ~
Nominal: PN16.0 ~ 35.0MPa
Connection: Welding
Suitable medium: water, oil, natural gas, etc.
Temperature: -29 ℃ ~ 121 ℃
Valve Manufacturing: GB12235-1994
Valve Manufacturing: GB12235-1994
Flange Standard: GB9113
Valve Test: GB / T13927-1992

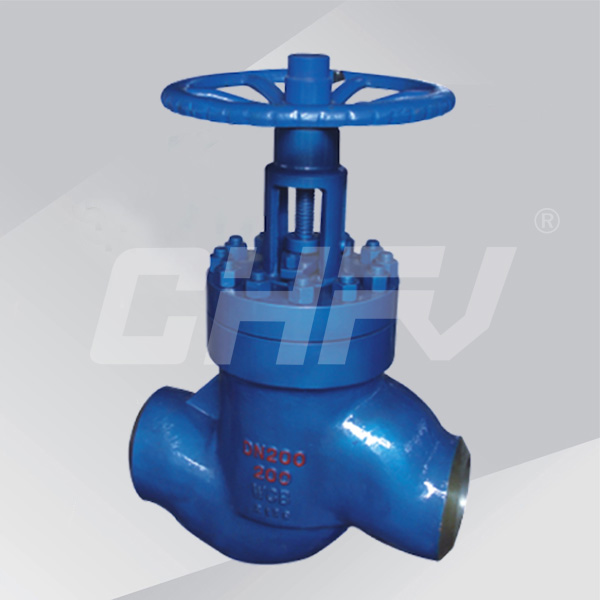

High pressure balance welding throttle J6B6Y J6B7Y reference API and related standards optimized design, novel structure, the valve flap has several holes and the upper chamber connected to achieve pressure from top to bottom balance. The use of composite packing, sealed, reliable, low friction. Sealing with live valve seat structure. Surfacing Carbide.
Valves can be installed in horizontal or vertical pipe
|
Nominal pressure |
16.0 |
20.0 |
25.0 |
35.0 |
|
Shell test pressure |
24.0 |
30.0 |
37.5 |
52.5 |
|
Seal test pressure |
17.6 |
22.0 |
27.5 |
38.5 |
|
Suitable media |
Water, oil, natural gas and so on |
|||
|
proper temperature |
-29 ° C to 121 ° C |
|||
|
Valve Manufacturing: GB12235-1994 |
|
Structure length: GB / T15188.1-1994 |
|
Valve test: GB / T13927-1992 |
High pressure balance welding throttle J6B6Y J6B7Y shape and connection dimensions
|
Nominal pressure |
Nominal diameter |
Size (mm) |
|||||
|
D |
G |
C |
L |
H |
W |
||
|
16.0 |
25 |
22 |
27 |
49 |
254 |
243 |
220 |
|
32 |
28 |
33 |
60 |
279 |
299 |
300 |
|
|
40 |
35 |
40 |
70 |
305 |
332 |
300 |
|
|
50 |
47 |
52 |
85 |
279 |
367 |
320 |
|
|
65 |
57 |
63 |
103 |
330 |
383 |
320 |
|
|
80 |
73 |
79 |
116 |
470 |
376 |
320 |
|
|
100 |
98 |
104 |
142 |
546 |
472 |
350 |
|
|
150 |
146 |
152 |
201 |
610 |
627 |
450 |
|
|
200 |
190 |
196 |
258 |
737 |
760 |
550 |
|
|
25.0 |
25 |
22 |
27 |
49 |
254 |
243 |
220 |
|
32 |
28 |
33 |
60 |
279 |
299 |
300 |
|
|
40 |
35 |
40 |
70 |
305 |
332 |
300 |
|
|
50 |
47 |
52 |
85 |
279 |
367 |
320 |
|
|
65 |
57 |
63 |
103 |
330 |
383 |
320 |
|
|
80 |
70 |
76 |
116 |
470 |
376 |
320 |
|
|
100 |
92 |
98 |
156 |
546 |
472 |
350 |
|
|
150 |
136 |
142 |
220 |
705 |
627 |
450 |
|
|
200 |
174 |
180 |
270 |
832 |
760 |
550 |
|
High pressure balanced welding throttle J6B6Y J6B7Y main parts material
|
Part Name |
Body valve cover |
Valve stem cylinder liner |
filler |
Studs |
O-ring |
|
material |
Carbon steel |
stainless steel |
PTFE + rubber |
35CrMoA |
Nitrile rubber |
