Clamping throttle cut-off valve
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal Diameter: DN25 200mm ~
Nominal: PN16.0 ~ 35.0MPa
Connection: Welding
Suitable medium: water, oil, natural gas, etc.
Temperature: -29 ℃ ~ 121 ℃
Valve Manufacturing: GB12235-1994
Valve Manufacturing: GB12235-1994
Flange Standard: GB9113
Valve Test: GB / T13927-1992

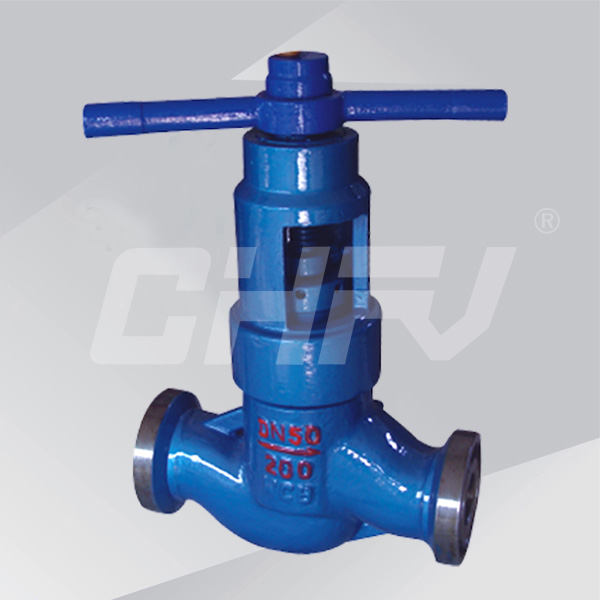

High Pressure Balance Clamp Globe Valve J8B6Y J8B7Y Reference API and related standards optimized design, novel structure, the valve flap has several holes and the upper chamber connected to achieve pressure from top to bottom balance. The use of composite packing, sealed, reliable, low friction. Sealing with live valve seat structure. Surfacing Carbide.
|
Nominal pressure |
16.0 |
20.0 |
25.0 |
35.0 |
|
Shell test pressure |
24.0 |
30.0 |
37.5 |
52.5 |
|
Seal test pressure |
17.6 |
22.0 |
27.5 |
38.5 |
|
Suitable media |
Water, oil, natural gas and so on |
|||
|
proper temperature |
-29 ° C to 121 ° C |
|||
Valve Manufacturing: GB12235-1994
Clamp coupling: JB3970
Valve Test: GB / T13927-1992
High Pressure Balance Clamp Globe Valve J8B6Y J8B7Y Shape and connection dimensions
|
PN |
DN |
Size (mm) |
|||||
|
D |
P |
D1 |
L |
H |
W |
||
|
16.0 |
25 |
twenty two |
115 |
243 |
220 |
||
|
32 |
28 |
130 |
299 |
300 |
|||
|
40 |
35 |
130 |
332 |
300 |
|||
|
50 |
47 |
150 |
367 |
320 |
|||
|
65 |
57 |
170 |
383 |
320 |
|||
|
80 |
73 |
190 |
376 |
320 |
|||
|
100 |
98 |
215 |
472 |
350 |
|||
|
25.0 |
25 |
22 |
115 |
243 |
220 |
||
|
32 |
28 |
115 |
243 |
300 |
|||
|
40 |
35 |
130 |
332 |
300 |
|||
|
50 |
47 |
150 |
367 |
320 |
|||
|
65 |
57 |
170 |
383 |
320 |
|||
|
80 |
70 |
190 |
376 |
320 |
|||
|
100 |
92 |
215 |
472 |
350 |
|||
High Pressure Balance Clamp Globe Valve J8B6Y J8B7Y Main Parts Material
|
Part Name |
Body valve cover |
Valve stem cylinder liner |
filler |
Studs |
O-ring |
|
material |
High-quality carbon steel |
stainless steel |
PTFE + rubber |
35CrMoA |
Nitrile rubber |
